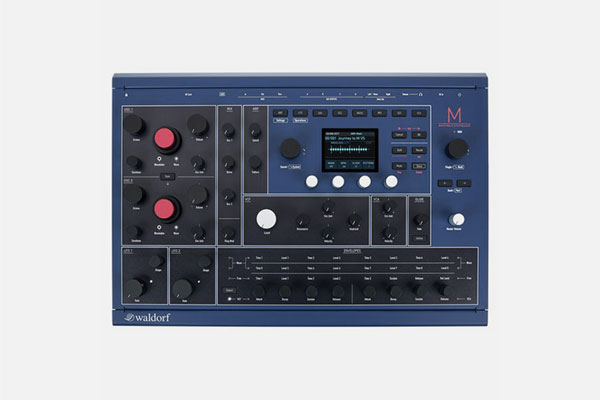

Waldorf M by Waldorf

In Stock at Warehouse
This item is available at our warehouse. It will shipped in the next 3-7 working days.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

With M, we are musically returning to our roots by bringing back classic Microwave and ‘modern’ Microwave II tone generation as a new-generation classic hybrid wavetable synthesizer.


  • Quadruple multitimbral (4 parts can be assigned to 4 individual stereo outputs)
  • 2 Wavetable oscillators with separate wavetable sound generation and two different models (Waldorf Microwave I and modern Waldorf Microwave II)
  • 96 Factory wavetables + 32 memory locations for user wavetables
  • Analogue low-pass filter with 24 dB/oct (SSI 2144 extended cascade filter) with saturation
  • Analogue stereo VCA for each voice
  • 4 Envelope generators: Eight-segment time/level wave envelope, VCF and VCA-ADSR envelopes and a freely assignable four-segment time/level envelope
  • Two LFOs with different waveforms
  • Arpeggiator with 16 preset patterns and chord mode
  • 2048 Sound programs and 128 multi-programs
  • SD card slot for loading and saving sounds, sound banks and user wavetables
  • MIDI: USB 2.0 and DIN (5-pin DIN sockets for In/Out/Thru)
  • 2 Line outputs: 6.3 mm unbalanced jack (L/R stereo)
  • 4 Stereo outputs: 6.3 mm TRS jack (aux outputs A-D)
  • Size: 440 x 305 x 85 mm
  • Weight: 5.7 kg
