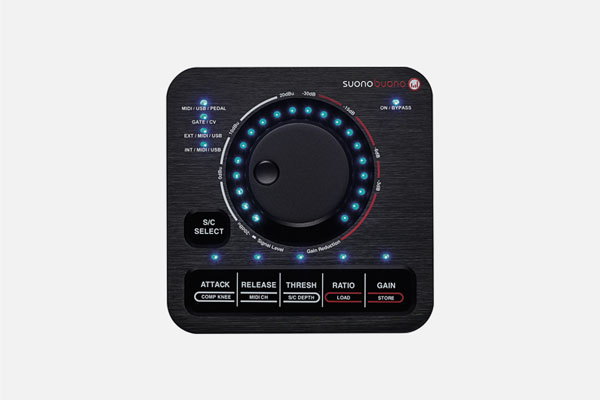

nABC+ by Suonobuono

Features

• Audio Input: 2 × 1/4″, impedance balanced, 30 kOhm
• Max Audio Input: +19.5 dBu
• Audio Output: 2 × 1/4″, impedance balanced, 400 Ohm
• Max Audio Output: +19.5 dBu
• External Sidechain Audio Input: 1 × 1/8″, max 20 dBu, 50 kOhm, unbalanced
• External Control Voltage Input: 1 × 1/8″, 0–5V unipolare (10V tollerati)
• Gate Input: 1 × 1/8″, 0–5V unipolare (10V tollerati)
• MIDI Input: 1 × 1/8″ TRS (cavo DIN→TRS incluso)
• MIDI Output: trasmissione di tutti i parametri audio
• USB: Type B, 2.0
• Frequency Response: 20 Hz – 20 kHz (+0.5 / -0.5 dB)
• LINE THD+N: <0.035% (A-weighted), <0.04% (unweighted); @1 kHz, 0 dBu, senza compressione o boost
• Compressor Threshold Range: da -20 dBu a +20 dBu
• Compressor Ratio: da 1:1 a -1:1
• Preamplifiers gain (LINE input): regolabile da 0 a +25 dB
• Preamplifiers gain (LINE output): regolabile da 0 a +20 dB
• Sidechain gain: selezionabile 0 / +25 dB
• Maximum gain reduction: >30 dB
• Presets: 8, definiti dall’utente
• Attack time: regolabile
• Release time: regolabile
• MIDI control: sidechain trigger, tutti i parametri audio, selezione preset
• Compression knee: regolabile, hard o soft
• Power: 5V via USB, consumo tipico 500 mA (consigliato alimentatore da 2A)
• Dimensioni: 125 × 125 × 40 mm
• Peso: 450 g
