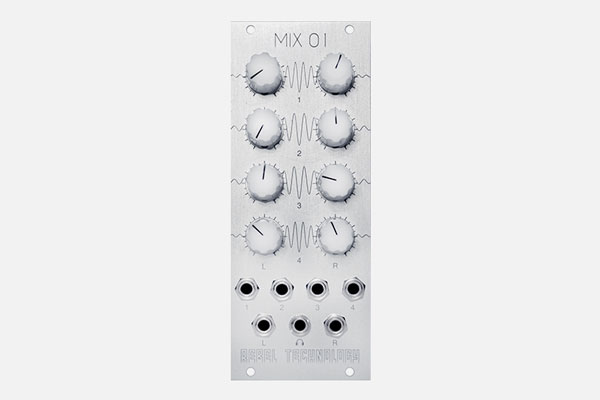

Mix 01 is an extensible 4 in / 2 out matrix mixer with dedicated stereo headphone output. It delivers crystal clear, transparent audio as well as precise control voltage mixing.
The knobs set the level of each input at each output. The top left knob sets the level of the first input going to the left output channel. The top right knob sets the same input at the right output channel. The second row sets the levels of input two, and so on.
- Size: 10HP
- Depth: 20mm
- Power: +12v: < 30mA, -12v: < 30mA
