Shades by Mutable Instruments

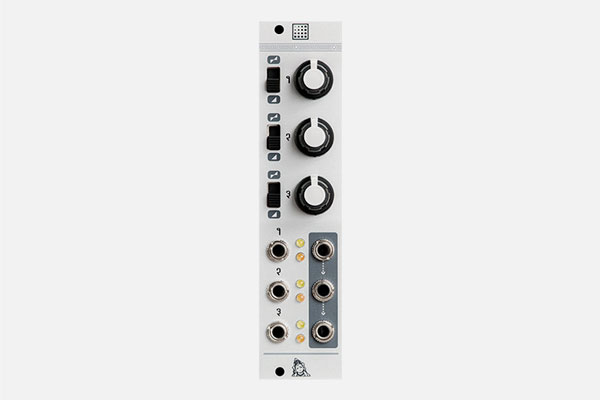

The 2020 revision matches the design language used in the most popular and recent Mutable Instruments modules like Marbles, Plaits or Rings.
Shades provides 3 channels of audio/CV processing which can be configured either as active attenuators or as attenuverters. A bicolor LED monitors the polarity and intensity of the audio or CV signal on each output.
Unconnected inputs are normalized to an internal precision voltage reference, which can produce either a +5V or +10V constant voltage.
Shades’ outputs are daisy-chained, allowing adjacent groups of 2 or 3 channels are mixed together.
- Size: 6HP
- Depth: 20 mm
- Power: 15 mA +12V, 15 mA -12V
