€98.00
Discontinued
The item is discontinued.

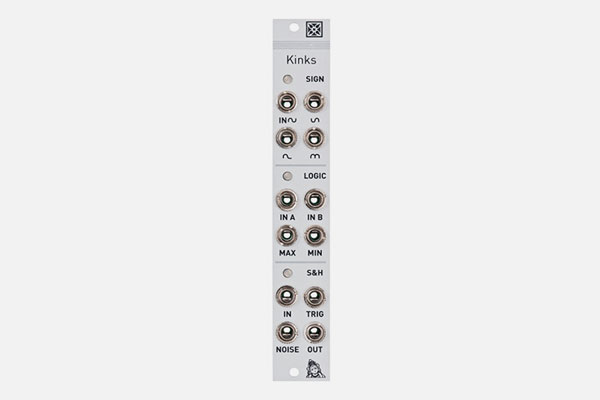

With the same compact 4-HP size as its vanilla friend Links, Kinks provides three analog utility functions for altering the shape of audio or control signals.

Features

  • All inputs DC-coupled
  • All circuits handle audio-rate signals
  • Input impedance: 66k for RECTIFY, 90k for LOGIC, 1M for S&H
  • S&H TRIG input edge detector: minimum pulse width: 25µs. Maximum slew rate: 0.2V/ms
  • Size: 4HP
  • Depth: 20 mm
  • Power: 25 mA +12V, 25 mA -12V
