The item is discontinued.

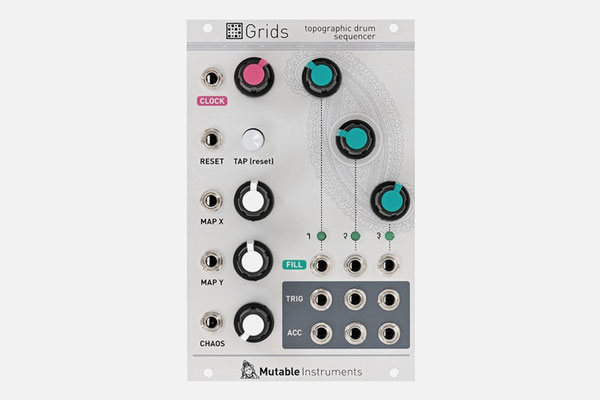

Take the user interface of an euclidean sequencer, a healthy dose of machine learning and graph algorithms, megabytes of drum loops, hours of intensive computations and you’ve got a drum pattern generator like no other.

Grids’ “brain” is a map of the typical drum patterns used in (mostly electronic) music, laid out by similarity, trained on a large corpus of drum loops. The module can smoothly interpolate and navigate from one pattern to the other, at the whim of a knob move or a CV.


  • Internal clock with a 40 to 240 BPM range
  • Beat indicator / Tap tempo button (reconfigurable as a reset button)
  • External clock input, with selectable resolution (24, 8 or 4 ppqn)
  • Pattern reset trigger input
  • Pattern randomization knob with CV input
  • 3 output channels (BD, SD, and HH/percussion)
  • 3 additional outputs, configurable as Accent/Clock/Reset or per-channel accent
  • Size: 16HP
  • Depth: 20 mm
  • Power: 25 mA +12V, 1 mA -12V
