XVI Desktop USB 16 Channel Fader Bank by Michigan Synth Works

Available Soon
Estimated stock date 26 Jul 2021

Price match guarantee. If you find a cheaper price, we'll match it. Write us

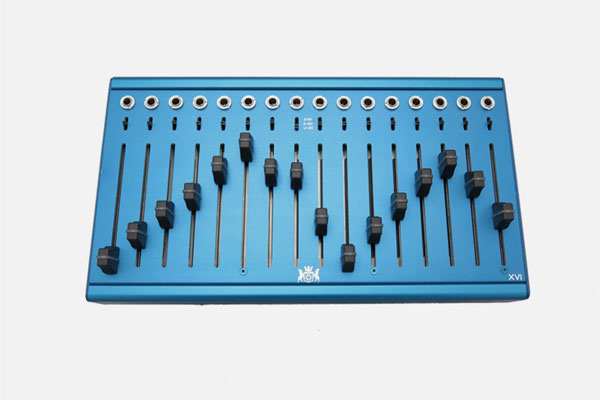

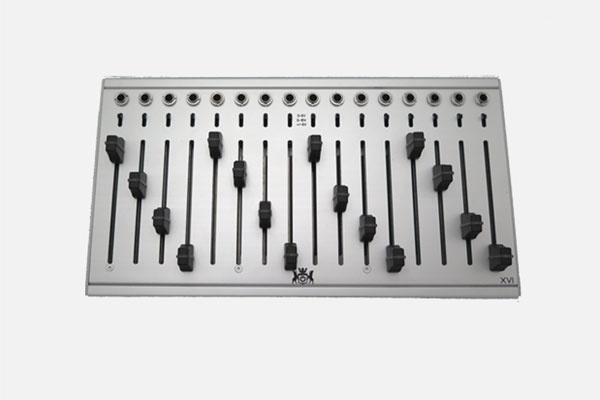

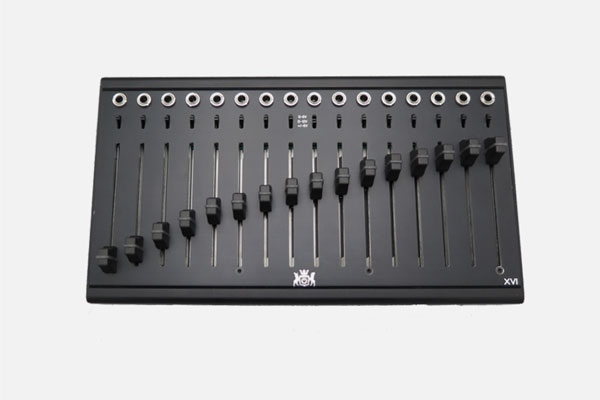

XVI Desktop is a 16 channel desktop control surface.

This device requires a MiniUSB 5V power supply which supplies 500mA or more (not included) for stand alone use. It is NOT recommend for use with passive USB hubs, only powered ones.


  • Long throw LED 60mm faders
  • 0-5V, 0-10V, -5 to +5V CV ranges per channel
  • USB Powered (MINI USB, Cable included)
  • Fully analog CV outputs
  • I2C communications as leader or follower
  • 2x Fully buffered I2C Ports for longer cable runs. (3.5mm TRS)
  • I2C mode and addressing easily set by hardware switches. No coding needed
  • USB MIDI and TRS B MIDI (can be used simultaneously with different mappings)
  • I2C, MIDI, and CV can be used simultaneously
  • Arduino codebase for further customization of midi output/I2C data
  • Enclosure is 220mmx125mmx31mm
