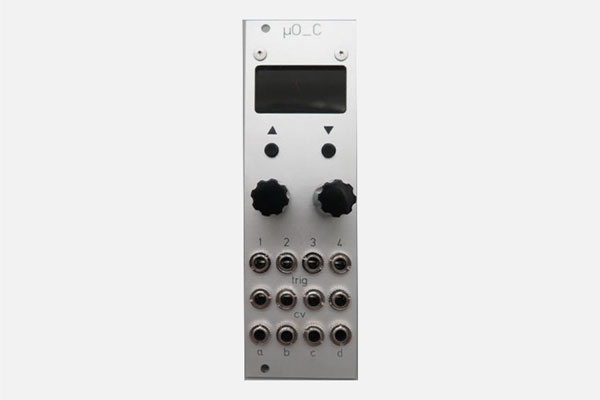

µO_C (Ornament & Crime) by Michigan Synth Works
This is a remake of one of the best DIY and open source module called "Ornament & Crime".
The hardware of the µO_C is based on a Teensy 3.1/3.2 dev board and is therefore equipped with a 32bit ARM Cortex M4. The CV outputs are 16bit accurate.
Therefore even the finest gradations, e.g. exotic scales, can be set very precisely. The CV inputs are 12bit accurate with an update rate of up to 16Khz! Additionally there are four trigger inputs, which are activated above 2.5V. The total latency in the system from the arrival of a trigger to the output is 100µs.
Altogether the µO_C works as a quantizer with an accuracy of less than 1cent (1/100th of a semitone) and a latency of 0.1ms. That's pretty pretty good!
- Size: 8HP
- Depth: 35mm
- Power: 85 mA at +12 V, <10 mA at -12V
