STO by Make Noise

€219.00
Out of Stock
The item is out of stock. Leave your email to to be contacted once the item will be in stock again.

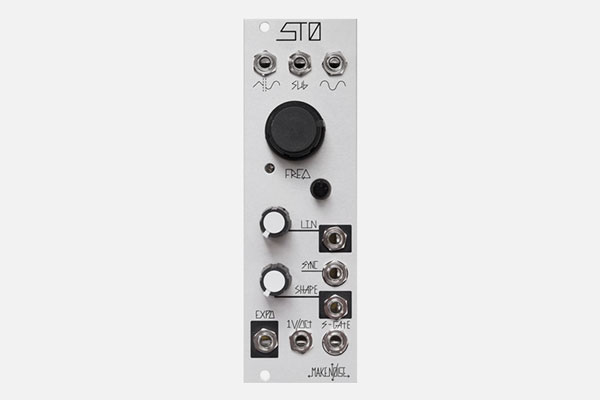

The STO music synthesizer module is a compact Voltage Controlled Oscillator designed for generating SINE waves, Variable wave-SHAPEs, SUB-Octaves, Oscillator SYNC and Linear FM in the analog domain. The Sub-Timbral Oscillator is the more subtle and melodic friend to the DPO's complex harmonic lattice.

Features

  • Triangle Core with outputs for SINE, SUB and Variable SHAPE
  • Unique Variable SHAPE circuit ripples Even and Odd harmonics for subtle timbral shifts
  • Linear FM input with Depth control
  • EXPOnential input for deep FM, SYNC sweeps or Transposition of sequences
  • SUB-Oscillator yields max bass
  • S-Gate input for gating or sync of SUB-Osc. independent of other outputs
  • Hard SYNC circuit which combined with Linear FM and Variable SHAPE yields harmonically rich sounds
  • Pairs well with the MMG or Optomix
  • Size: 8HP
  • Depth: 30mm
  • Power: 40 mA +12V, 30 mA -12V
