Echophon by Make Noise

On Request
This item is on request and it is usually available in 10-15 working days. Send us an email to get an accurate extimate of delivery time.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

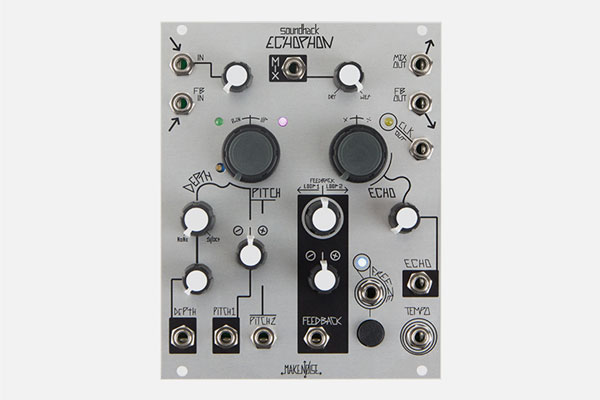

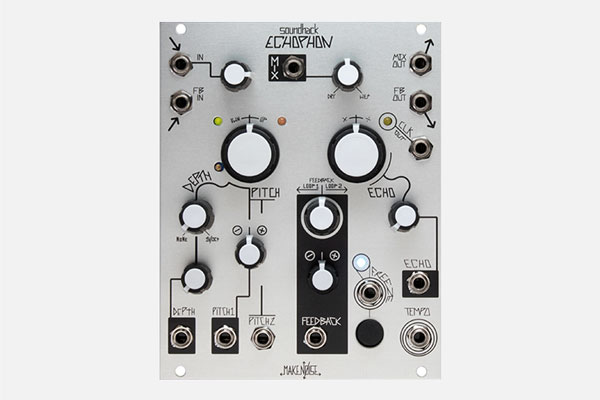

Ecophon eurorack module is a pitch Shifting Echo with smooth Time Modulation, Tempo Sync, saturating Feedback and a unique Pitch Shifting algorithm inspired by the Springer Tempophon and engineered by Tom Erbe of soundhack.


Shift Pitch of signal +/- 2 Octaves Exponential control of delay time -Maximum Time 1.7 Seconds, Minimum Time 7 ms Tempo input allows synchronization of Echoes to multiple or division of an external Clock Two independent internal digital Feedback paths (Loop 1 and Loop 2) External Analog Feedback Path for filtered or processed echoes FREEZE button/ gate input allows for hold, stutter and sampling techniques 24 bit ADC/DAC, 32bit processing, 16bit delay storage operating at 40khz Vactrol based Mix circuit for smooth blending of dry and wet signals All Analog Dry Signal Path Size: 20HP Depth: 30mm Power: 70 mA +12V, 40 mA -12V
