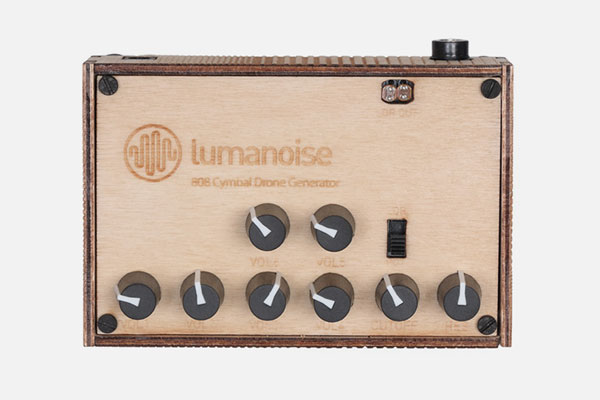

Lumanoise 808 Cymbal Drone by L.E.P
Based on the TR-808's cymbal circuit consisting of six oscillators tuned to different frequencies, L.E.P developed the 808 Cymbal Drone Generator.
The six square wave oscillators are tuned to following fixed frequencies: 119Hz, 176Hz, 214Hz, 303Hz, 363Hz and 666Hz. Each oscillator's volume can be set with an individual potentiometer.
The oscillator mix passes a resonant 12dB/octave lowpass filter that's cutoff frequency can be either controlled by a potentiometer or two photo resistors. Included a felt case.
- 1/4" audio out mono
- Requires a 12 Volts DC (center positive) power supply - not included.
