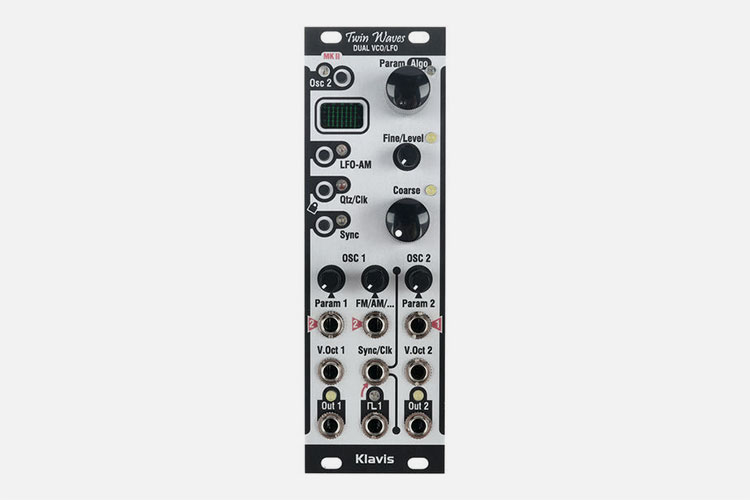

Twin Waves MkII by Klavis

On Request
This item is on request and it is usually available in 10-15 working days. Send us an email to get an accurate extimate of delivery time.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

This MKII evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections. All of the original features are present: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features. More than ever the Twin Waves is versatility at its best.


  • Digital Dual VCO/LFO
  • Both oscillators can be used as VCO or LFO
  • Functions in VCO mode: V/Oct tracking over 10 octaves, through zero and linear FM, sub-octave output, hard & soft, ynchronisation
  • Quantiser with different scales
  • 20 Synthesis algorithms e.g. wave shaping, phase modulation, unison oscillators, oscillator sync (with phantom oscillator), additive synthesis, bit reduction, ring modulator, noise with filter and more
  • Functions in LFO mode: simultaneous signal and trigger outputs, external synchronisation, wave shaping, phase modulation, random algorithms
  • Display with contextual symbols and help text
  • Automatic saving of all settings
  • 3 CV inputs with attenuators
  • V/Oct. and Sync inputs
  • Signal outputs for both channels and separate pulse output
  • Size: 8HP
  • Depth: 21 mm
  • Power: 52 mA (+12 V) / 17 mA (-12 V)
