Switch 4 by Joranalogue

€113.00
Available Soon
Estimated stock date 12 Apr 2021

Price match guarantee. If you find a cheaper price, we'll match it. Write us

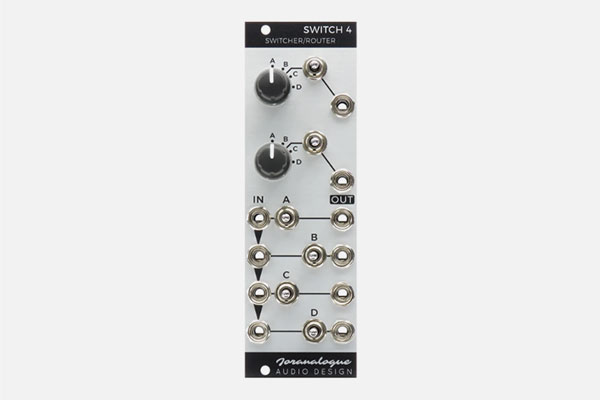

Designed with and for performing artists, Switch 4 delivers a hands-on signal switching and routing solution for your Eurorack modular synthesiser.

Quickly mute audio signals, trigger envelopes live, select modulation sources on the fly... With custom dual-action toggle switches, an intuitive interface and sturdy construction, Switch 4 will prove just as useful on stage as in the studio.

The bottom switching section includes four lever-actuated toggle switches, to make or break the signal path between the inputs and outputs. These switches feature a dual action: latched upwards, momentary downwards.

The four input signals are also sent to the top routing section, where two rotary switches allow you to select the signals to be sent to the matching outputs. Here you'll also find dual-action toggle switches, for added versatility.

Features

  • Bottom switching section with four custom dual-action toggle switches.
  • Top routing section with two rotary and two dual-action toggle switches.
  • Inputs normalised sequentially for use as switched multiples.
  • Full analogue buffered signal paths with extremely low noise and distortion.
  • Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
  • Size: 8HP
  • Depth: 30mm
  • Power: +12: 25 mA, −12: 25 mA
