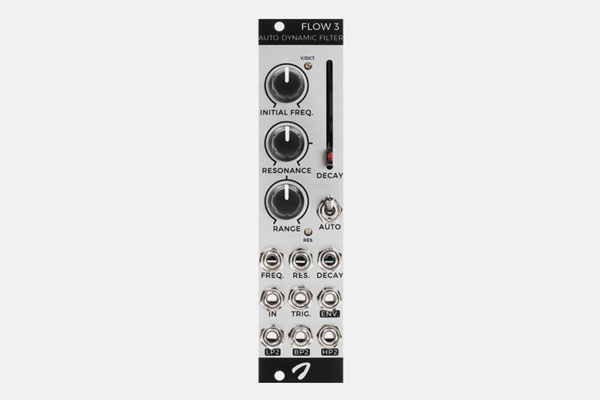

Flow 3 by Joranalogue
218,00€
Price incl. 22% VAT
In Stock at Warehouse
This item is available at our warehouse. It will shipped in the next 3-7 working days.
Price match guarantee. If you find a cheaper price, we'll match it. Write us
Shop now, pay later in 3 interest-free payments with starting from 60,00€
Flow 3 is a filter that sounds bigger than it looks
Features
- Analogue state-variable VCF with self-oscillation capability.
- Core integrator saturation adds distinctive character.
- Extra-smooth resonance with voltage control input.
- Filter outputs: 2-pole lowpass, 2-pole bandpass and 2-pole highpass.
- Self-oscillation: quadrature sine/cosine waves, separated by 90°, with temperature-compensated 1 volt per octave tracking.
- Integrated voltage-controlled decay generator/envelope follower for self-modulation.
- Decay circuit driven by external triggers and/or incoming signal amplitude.
- Envelope output can modulate other modules in tandem.
- Linkwitz-Riley crossover response unlocks dual-band processing possibilities.
- Impedance-compensated outputs with dual-colour vari-wave LED.
- Trim potentiometers accessible from the front panel.
- Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
- Bullet-proof design: polarised power header and MOSFET protection circuit.
- Size: 6HP
- Power: +12: 45 mA, −12: 45 mA
