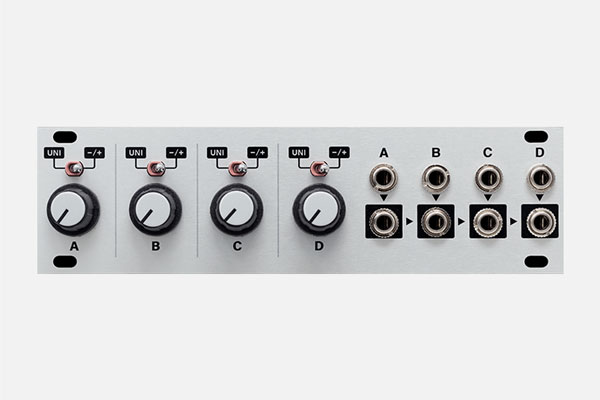

Quadratt 1U by Intellijel
The shorter and wider brother to the popular Triatt module!
The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each channel.
Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0V to +5V or -5V to +5V depending on the position of the mode switch. This is great for setting up “performance macros” in your patch to control multiple parameters with a single knob.
- Size: 28HP
- Depth: 25mm
- Power: 24 mA +12V, 23 mA -12V
