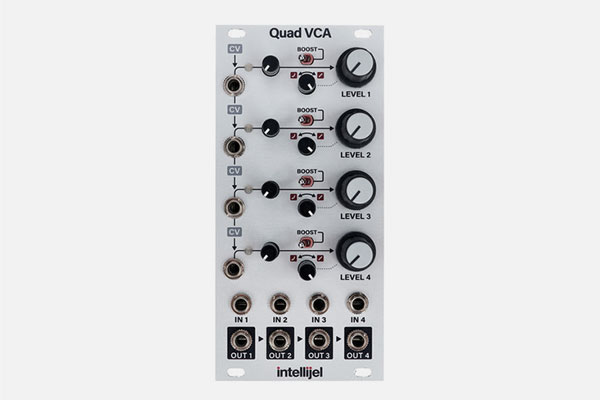

Quad VCA by Intellijel
This item is available at our store. Ready for shipment.
Price match guarantee. If you find a cheaper price, we'll match it. Write us
This item is used. Everything is in perfect working order. Comes with original box. View more pictures.
- Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO
- Dedicated CV attenuators with dual color LEDs for monitoring bipolar CV signals
- Continuously adjustable response from linear to exponential per VCA
- Each CV input is normalled to the adjacent one for cascaded control
- Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched
- Each VCA has a boost switch that increases the output level by approximately 6dB (double)
- Size: 12HP
- Depth: 29mm
- Power: 65mA @ -12V, 65mA @ 12V
