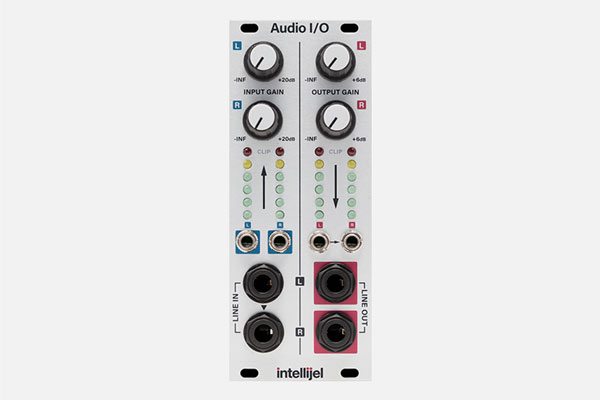

Audio I/O by Intellijel
This item is on request and it is usually available in 10-15 working days. Send us an email to get an accurate extimate of delivery time.
Price match guarantee. If you find a cheaper price, we'll match it. Write us
Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.
Audio I/O (formerly Audio Interface II) allows you to effectively interface your Eurorack modular system to the balanced line level world (+4 dBu).
You can send and return to rack mount/desktop fx units, patch to external line level instruments like synths and drum machines, interface to a DAW and much more.
- 2 x Balanced TRS 1/4″ to Eurorack modular level input paths
- 2 x Eurorack modular level signals to Balanced TRS 1/4″ output paths
- 4 x six stage led VU meter to monitor all inputs and outputs simultaneously
- Input path has up to 20 dB of gain, which allows you to patch in low level consumer level signals and boost them
- Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain
- Size: 10HP
- Depth: 44mm
- Power: 120 mA +12V, 50 mA -12V
