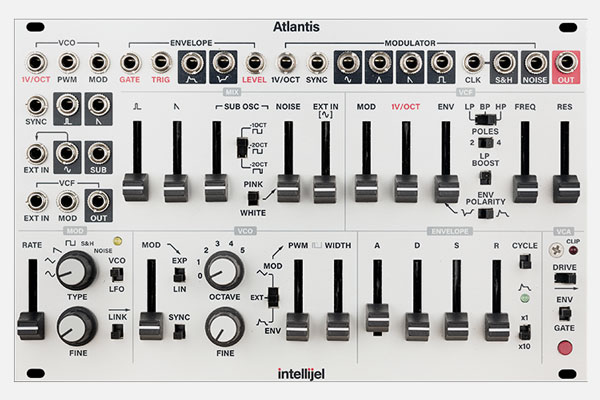

The Atlantis is heavily inspired by the architecture and sound of the classic Roland SH-101. It has always been one of our favorite synths and we really liked how the seemingly limited architecture allowed for all sorts of creative and musically useful sounds to be easily generated. Just like the 101 it is quick to dial in beautifully rich bass and lead sounds but there is much more sonic territory to explore as well.
The Atlantis uses triangle core VCOs (based on the Dixie core) instead of Saw core which respond much more musically to FM. The modulation oscillator can be used as an LFO or VCO (audio rate) and both track very precisely over 8 or more octaves.
The filter section is a Roland style cascaded 4 pole multimode filter with LP, BP and HP modes. The LP Boost switch engages a special mode useful for the LP that produces a much fatter and prominent sound that is not drowned out by resonance (unlike the original SH-101). The filter self-oscillates to produce a very clean sine wave which also tracks 1V/Oct. Between the Mod VCO, Primary VCO, Sub Oscillator and resonating filter it is possible to layer up to four different pitches at one time.
- Size: 40HP
- Depth: 30mm
- Power: 214 mA +12V, 196 mA -12V
