Total Recall by Endorphin.es
€188.00
In Store
This item is available at our store. Ready for shipment.
Price match guarantee. If you find a cheaper price, we'll match it. Write us

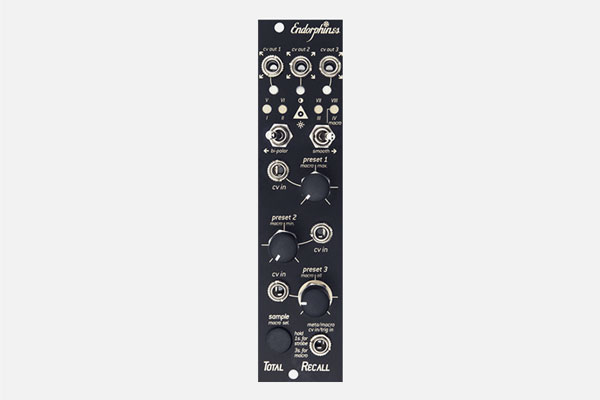

The Total Recall is the 6 HP module designed to ease up transitions in live sets by controlling 3 (!) CVs at once, just by the use of one soulful hand. Intuitive to set up the desired voltages to control anything in your modular system that accepts CV (either unipolar 0-5V or bipolar -5-+5V). The preset manager/multistage CV controller rocks a macro feature no one would ever want to miss in future live performances.
Features
- 6 HP width, 3x CV preset manager/multistage and macro controller for Eurorack
- 3 channel control voltage generator/attenuator/attenuverter
- 8 preset CV manager with two banks: bipolar -5…+5V and unipolar 0…+5V
- Instant, slewed or continuous change between stored CV values
- 3-channel macro CV generator with smooth min./max. control via CV, trigger or manually
- CV acquisition: 16 bits SDADCs, CV outputs: 12 bits DACs
- Depth: 30 mm (with plugged ribbon cable)
- Power requirements: +12V: 55mA, -12V: 15mA
