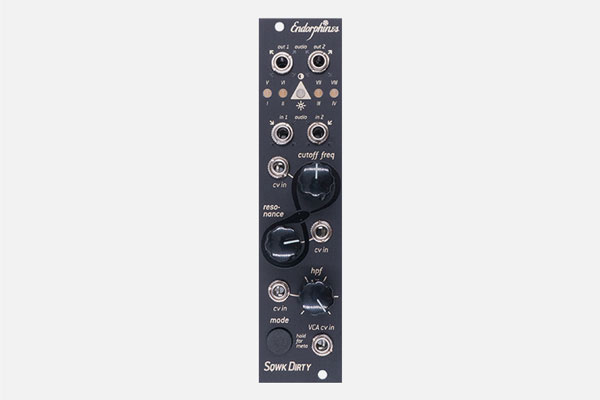

Squawk Dirty To Me by Endorphin.es

181,00€
In Stock at Warehouse
This item is available at our warehouse. It will shipped in the next 3-7 working days.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

Shop now, pay later in 3 interest-free payments with starting from 49,00€

Endorphin.es' Squawk Dirty To Me delivers versatile stereo filtering with eight distinct modes, including ladder, OTA, LPG, and comb filters. With CV-controlled resonance, meta scanning, and a built-in VCA, it's a powerful tool for dynamic sound shaping.

Features

  • 6HP stereo digital VCF with zero-delay feedback architecture
  • Eight filter modes selectable via button or meta CV scanning:
    • 24dB/oct transistor ladder low-pass (Minimoog-style)
    • 12dB/oct OTA low-pass (MS-20-style)
    • Non-resonant low-pass gate (vactrol emulation)
    • Resonant low-pass gate with fast decay
    • Bipolar DJ isolator-style state-variable filter
    • High-pass state-variable filter
    • Band-pass state-variable filter
    • Comb filter / resonator
  • Built-in high-pass filter in series to attenuate low-end frequencies
  • Integrated post-filter VCA with dedicated CV input (0–5V)
  • Stereo inputs and outputs; input 1 normalled to input 2 if unpatched
  • Meta CV input (0–5V) for dynamic filter mode scanning
  • Manual controls for cutoff frequency, resonance, and high-pass filter
  • All-pass stereo widening mode with adjustable delay up to ~1/3 second on right output
  • 96kHz, 16-bit digital audio processing
  • Width: 6 HP
  • Depth: 30 mm
  • Power consumption: +12V: 120 mA; -12V: 15 mA; +5V: 0 mA
