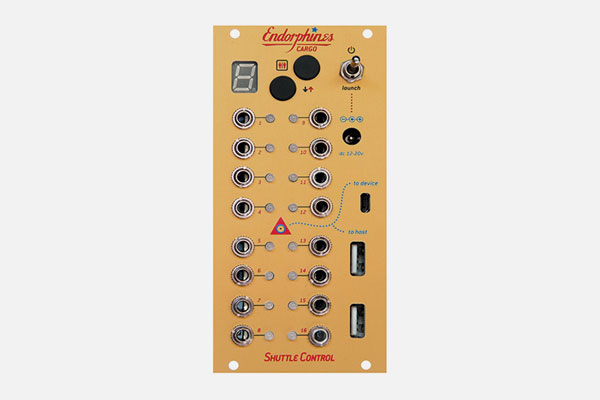

Shuttle Control by Endorphin.es
499,00€
In Stock at Warehouse
This item is available at our warehouse. It will shipped in the next 3-7 working days.
Price match guarantee. If you find a cheaper price, we'll match it. Write us
Shop now, pay later in 3 interest-free payments with starting from 136,00€
Shuttle Control is a 12HP Eurorack module that serves as a versatile USB/MIDI-to-CV converter and power supply. With 16 assignable CV outputs, it seamlessly bridges your modular system with MIDI controllers, DAWs, and USB devices.
Features
- 16 assignable CV outputs with LED indicators
- Supports USB device and host modes simultaneously
- Compatible with USB-MIDI controllers, keyboards, and DAWs
- Handles MIDI events including notes, CC, aftertouch, pitch bend, and clock
- Supports polyphony (up to 8 voices) and MPE (MIDI Polyphonic Expression)
- Integrated switched-mode power supply (PSU)
- Provides up to 1A on +12V, 0.7A on -12V, and 1A on +5V rails
- Accepts 12–20V DC input via 2.5mm center-positive barrel connector
- Web-based editor for preset configuration (Cargo4)
- Stores up to 16 user presets accessible via front panel
- Dimensions: 12 HP width, 35 mm depth
- Power consumption (when powered via bus board): +12V: 200 mA; -12V: 100 mA
