Cockpit² by Endorphin.es
Price match guarantee. If you find a cheaper price, we'll match it. Write us

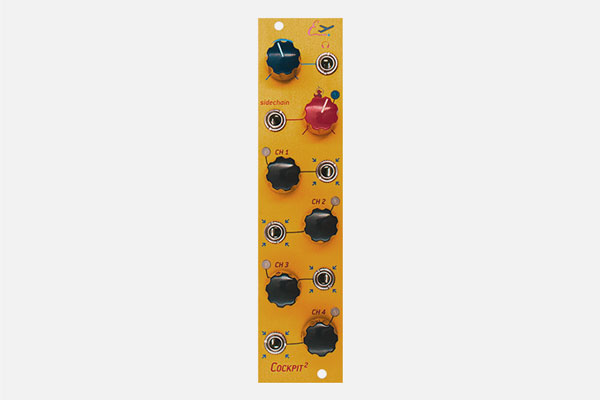

The Cockpit is a performance mixer with 4 stereo channels, two channels of send and return to use iOS devices for signal processing (via a 4-pin TRRS cable).
The module also has an on-board compressor with external sidechain input for ducking (CV, audio or trigger).
Cockpit also has a stereo output for headphones. A 1x 3,5mm TRS Stereo to 2 x 3,5 mono adaptor is included to offer more connectivity to monitors and other modules in your rack.
- Increased headroom
- Improved sound quality
- Daltonic friendly – the LEDs are blue/red instead of red/green
- No TRRS jacks anymore
- New knobs on the black module version
- 6 HP width, up to 1 1/2“ in depth – super slim and SHUTTLE friendly
- 4 stereo channel performance mixer – the missing link in the 84 HP SHUTTLE SYSTEM
- On-board compressor with external sidechain control to add proper dynamics or ducking to your mix
- Stereo output for speakerphones or headphones with enough current to drive a wide range of headphones
- Prepared for the “Cockpit Expander” module to use send/return functionality and more
- Size: 6HP
- Depth: 33mm
- Power: 75 mA +12V, 40 mA -12V
