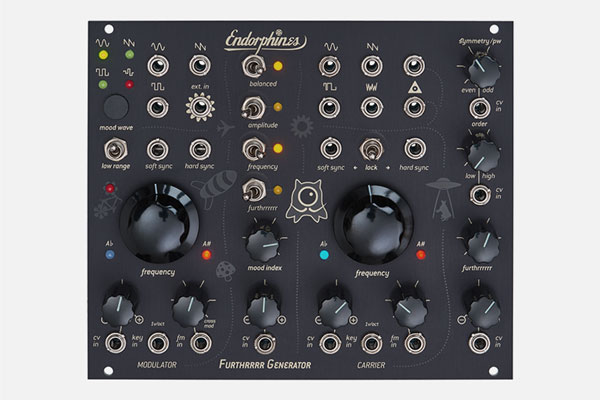

The Furthrrrr Generator has a main oscillator (carrier) with an extensive and fully voltage controllable wave mulitplier and a modulation oscillator (modulator) that can crossmodulate the carrier.
Each oscillator has hard and soft sync and also featrues an integrated tuner: if both LEDs are lit the VCO is at note A. Left LED is lit at note Ab and right LED at A#. Frequency potentiometers are ten-turn models and thus allow for eeazy tuning. Frequency range of the VCOs is 10Hz-10kHz (and much lower in modulator´s LFO mode).
Both VCOs feature 2 frequency CV inputs (1x with bipolar attenuator, 1x with 1V/octave), one FM input (jumper selectable between linear and exponantial FM) as well as separate input for hard and soft sync. The voltage characteristic can be selected between 1V/octave and 1.2V/octave (Buchla norm).
- Size: 30HP
- Power: 200 mA +12V, 200 mA -12V
