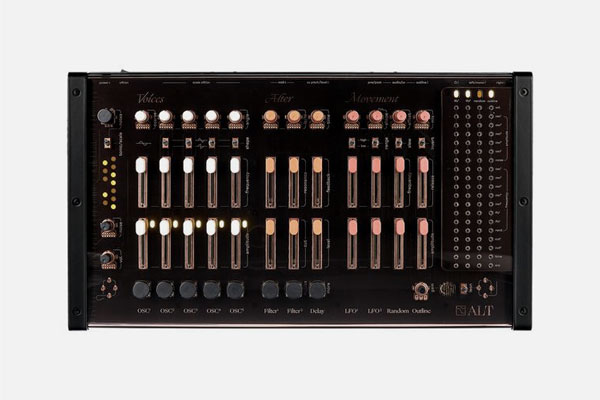

ALT by cyma forma

Features

• 5 oscillators with monophonic or polyphonic operation
• Oscillator 1: freely tunable sine-wave VCO
• Oscillators 2–5: DCOs with selectable triangle or sawtooth waveforms
• Oscillators 2–5: freely tunable or quantised pitch with adjustable stereo panning
• Individual level controls for all 5 oscillators
• Quantiser with 15 selectable scales and Tonic Mode for assigning oscillators to specific notes
• Noise generator with dedicated volume control
• Two resonant stereo filters in series, continuously variable from low-pass to band-pass and high-pass
• Filter 1 can be modulated by the noise generator; Filter 2 accepts external modulation signals
• Stereo delay with level, time and feedback controls
• 4 modulation sources: LFO 1, LFO 2, Random and Outline
• Pin Matrix for routing modulation to 19 destinations
• LFO 1 & 2 with mixable square and triangle waveforms, 0.01 Hz–1190 Hz range and MIDI sync
• Random Sample & Hold with level, frequency, slew rate and offset controls
• Outline Envelope Follower for integrating external audio signals
• Outline controls for level, release and mix, with signal inversion
• Built-in microphone with adjustable gain
• 3.5 mm input for audio or CV signals
• 2 light sensors for controlling volume and pitch
• Built-in arpeggiator
• Extensive MIDI control over voices and parameters
• Stereo outputs: 2 x 6.3 mm jack
• Stereo headphone output: 3.5 mm jack
• CV inputs for pitch and level: 2 x 3.5 mm jack
• Rugged steel housing with plexiglass control panel
• Dimensions (W x D x H): 404 x 227 x 57 mm
• Weight: 3.8 kg
