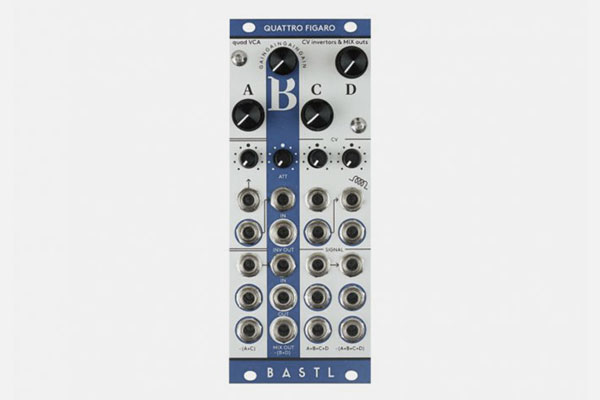

Quattro Figaro is a 4 channel VCA (voltage controlled amplifier) with one CV inverter per channel and outputs of mixed channels. Each channel A,B,C and D has its GAIN knob, CV IN jack with ATTENUATOR knob, INVERTED CV OUT, SIGNAL IN and SIGNAL OUT jacks. The signal gets amplified with gain linear to the control voltage. Control voltages above 6 volts get compressed non-linearly (property of VCA chip). Maximum gain is a little above 2. Amplified signal is outputted from the SIG OUT jack.
- Size: 10HP
- Power: +12 < 40 mA , -12 < 35 mA
