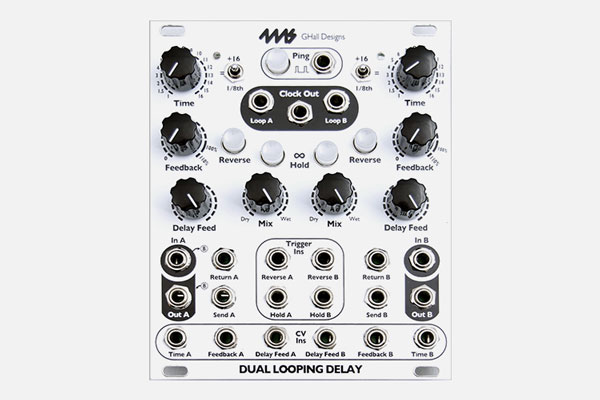

Dual Looping Delay by 4ms

Features

• Two independent delay/loop channels, synchronized to a common time base
• Almost 3 minutes delay/loop time per channel (2:54) in default storage mode (16-bit)
• 48kHz/16-bit sampling rate, option available for 24-bit storage
• Extremely quiet, low noise and low jitter design
• Normalled connections of input and output for flexible use in mono, stereo, or dual mode
• Tap tempo button and clock Ping input set the basis for one "beat"
• Delay/loop time set as a number of musical beats using the Time knob, switch, and CV jack
• Sample-accurate clock output for perfect synchronization
• Loop clock outputs for each channel
• Time switches change range of Time knob from 1/8th notes up to 32 bars
• Digital feedback, up to 110%
• Delay Level control, independent of dry/wet signal mix
• Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
• Reverse mode plays memory contents backwards
• With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
• Triggered toggle inputs for Infinite Hold and Reverse
• Send and Return on each channel for feedback with external modules
• CV jacks to control Time, Level, and Feedback
• As new features are developed, firmware can be updated by playing an audio file into the DLD
• Size: 20HP
• Power: +12V 188mA, -12V 48mA
• 25mm maximum depth with power cable
