Bitbox Micro by 1010 Music
645,00€
In Stock at Warehouse
This item is available at our warehouse. It will shipped in the next 3-7 working days.
Price match guarantee. If you find a cheaper price, we'll match it. Write us
Shop now, pay later in 3 interest-free payments with starting from 176,00€

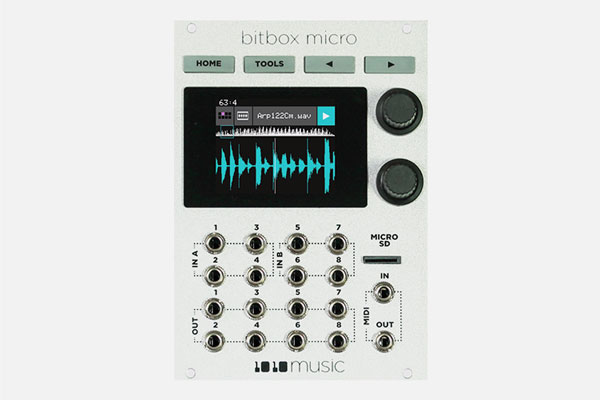

Bitbox Micro is a compact Eurorack sampler offering stereo playback, slicing, looping, and recording. A powerful sampling solution in just 18HP.
Features
- 8 stereo sample pads per preset with 5 playback modes: Sample, Clip, Slicer, Granular, and New Recording
- Supports up to 24-note stereo polyphony from 64MB internal memory or streams up to 8 large stereo samples (up to 4GB each) from microSD card
- Record stereo or mono audio directly into the module with optional clock-synced start/stop and threshold triggering
- Resample the master output internally without patching
- Automate multi-sample bank recording via MIDI and CV
- Touchscreen interface for intuitive navigation and parameter control
- Extensive sample parameter editing: start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, exclusive grouping, clip sync, slice sequencing, grain size/spread/count, and MIDI note/channel mapping
- 8 configurable inputs: stereo audio, gate, CV, or clock
- 6 assignable mono outputs plus stereo master output; all I/O is DC-coupled for CV recording/playback
- MIDI input/output via TRS Type A and B (adapter included); supports MIDI Learn for quick CC assignment
- Clock synchronization via analog clock input or MIDI clock
- 24-bit ADC/DAC with 32-bit internal processing
- Supports WAV files (16, 24, or 32-bit) at any sample rate (48kHz preferred)
- Dimensions: 18 HP width, 32 mm depth
- Power consumption: +12V: 400 mA; -12V: 0 mA; +5V: 0 mA
