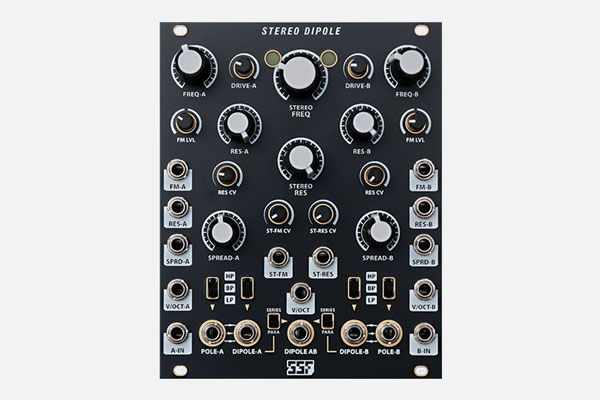

Stereo Dipole by SSF

Out of Stock
The item is out of stock. Leave your email to to be contacted once the item will be in stock again.

This item is used. Everything is in perfect working order. It comes with original box. Some rack rash. View more pictures.


  • Complex quad multimode filter
  • Organized into two sides with two filter cores each
  • Can be used for complex binaural panning, formant filtering, and standard filtering effects
  • Each side offers Drive, Freq, Spread, and Resonance controls
  • FM, Resonance, Spread, & 1V/Oct CV inputs for each side
  • Stereo Freq, Stereo Res, Stereo FM, and Stereo Res CV controls affect both sides by adding to their individually defined values
  • Selection of Highpass, Bandpass, and Lowpass modes for each filter core
  • Individual outputs for each core, as well as grouped outputs
  • Options for Serial or Parallel operation for each side
  • High resonance yields self-oscillation with a range of over 20 octaves
  • A input normalized to B input for stereo upmixing of mono sources
  • Size: 20HP
  • Power: 150 mA +12V, 150 mA -12V
