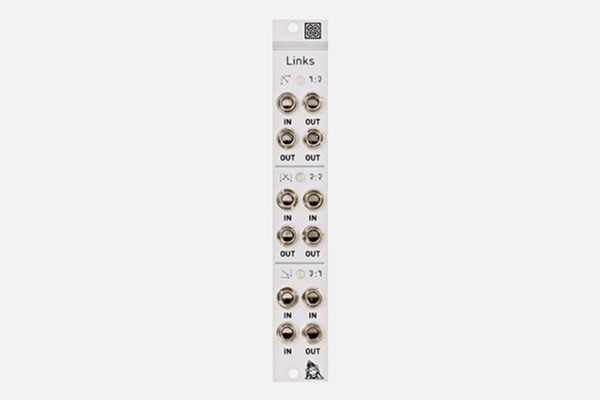

Links provides 3 utility functions focused on signal distribution and mixing.

Features

  • The 1:3 section is a buffered multiple, allowing a note CV to be distributed to up to 3 VCOs without voltage drop
  • The 2:2 section is a 2-input summer with unity gains (also known as a precision adder). The sum of the two input channels is distributed to 2 outputs
  • The 3:1 section is a 3-input mixer, with a gain of 1⁄3 per channel (also known as an averager). It is particularly suitable for rapidly mixing audio sources such as oscillators, for which a unity gain mixer would have caused clipping
  • Size: 4HP
  • Depth: 20 mm
  • Power: 15 mA +12V, 15 mA -12V
