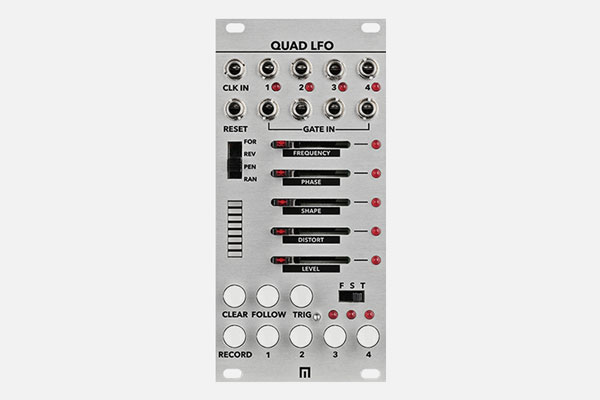

Quad LFO

An LFO, or low frequency oscillator, sends control voltage out in the shape of a waveform. The Quad LFO available shapes include sine, ramp, triangle, saw and pulsewidth and moves through these shapes using the SHAPE slider. You can send these 4 distinct LFOs directly out or to other modules for frequency modulation, VCA control, filter control, etc.

What makes this Quad LFO module different is that it also includes a 16 step automation sequencer as well as autosave or expanded preset functions when used in conjunction with Varigate 4+ and Varigate 8+.

Technical Specs

• Size: 12HP
• Depth: 26mm
• Power: 85 mA +12V, 17 mA -12V
