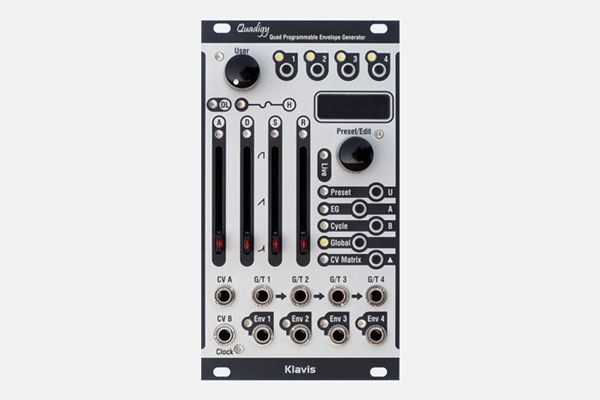

The Quadigy is a complex envelope generator focused on live play. The goal is to allow the user setting up rich, interactive and dynamically evolving envelopes without the risk of breaking up a subtle and intricate patch once on stage.

This is achieved by offering two main modes, one where full control is available and a Live mode where only the settings that are sensible using on stage are accessible.


  • Quad Envelope Generator
  • 4 Channels with 7-stage envelope each
  • Waveform of all time segments freely adjustable
  • Attenuator per envelope output
  • Cycle mode with time stretching and synchronisation to internal clocks
  • Tap tempo with multiplication/division
  • Programmable CV matrix for modulating parameters via inputs CV A and CV B
  • 32 Presets can be stored
  • Morphing function for presets and CV matrix
  • Multi-editing for polyphonic applications
  • Simplified live mode
  • Graphic display
  • 4 Gate/trigger inputs
  • 4 Envolope outputs
  • Size:: 14HP
  • Depth: 38 mm
  • Power: 24 mA (+12 V) / 10 mA (-12 V) / 40 mA (+5 V)
