Flexshaper by Klavis

€129.00
In Stock at Warehouse
This item is available at our warehouse. It will shipped in the next 3-5 working days.

Price match guarantee. If you find a cheaper price, we'll match it. Write us

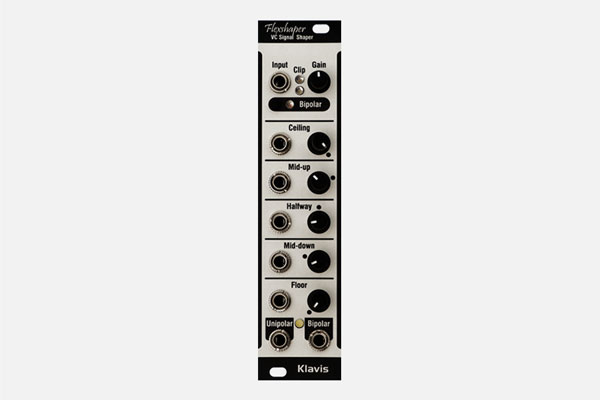

The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal. The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more. Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Features

  • Process from DC to full audio range
  • Unipolar/bipolar input mode switch
  • Nominal & clip level LEDs
  • Output signal LED
  • Input gain setting for nominal level setting, allows clean flat clipping when overdriven
  • Five manual voltage mapping potentiometers
  • Five CV control of the voltage mapping points
  • Simultaneously active unipolar and bipolar outputs
  • Firmware update via a simple audio file
  • Size: 6HP
  • Depth: 21mm
  • Power: 6 mA +12V, 7 mA -12V, 32 mA 5V
