The CGM Creative Mixer is a modular mixing solution for eurorack modular systems, designed to obtain a flexible setup, providing all the tools you may need in studio and during a live performance, as well as everything you may want to control via CV. It is currently composed of three modules: the Channel, the Group and the Master.

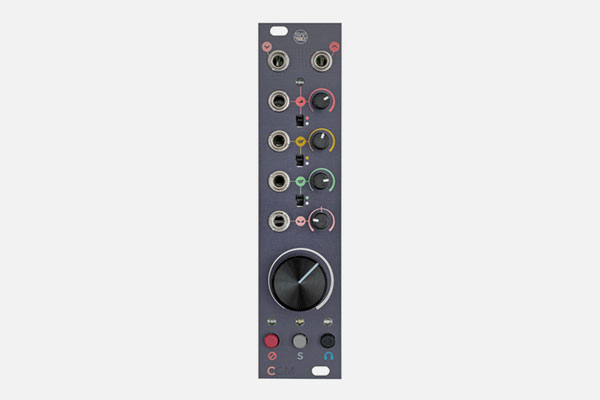

The CGM Channel module manages mono signals via the 3.5 mm input mono jack. It has a main stereo VCA with CV in and attenuator (RED), a direct output post main VCA (pre or post fader), two parallel sends with mono VCA with CV in and attenuator for each send and pre/post fader switch (YELLOW and GREEN), and a PAN control with offset CV and offset pot. This, together with the latching buttons for mute, solo in place, and PFL, manages the incoming signal and distributes it to the Group module.
- Size: 6HP
- Power: 80mA +12V, 80mA -12V
